Temperature Effects in Watches

Balance and balance spring
Compensation Balance and Spring: Click to enlarge

The timekeeping of a clock is usually determined by a pendulum swinging to and fro under the effect of gravity, with a little push, called an impulse, from the escapement every time the pendulum swings through its lowest point, which is accompanied by a gentle tick. A pendulum can't be used in a watch because the watch might be held at any angle but gravity only pulls downwards, so an alternative oscillator is needed. This is provided by the balance and balance spring. The image here shows a watch balance and balance spring. The balance comprises a central bar or arm and a circular rim. The arm has an axle passing through it at right angles about which it can rotate that is called the "balance staff".

The escapement mechanism pushes the balance so that it rotates in one direction and then the other. In early watches, which didn't have balance springs, the rate at which the balance went backwards and forwards was determined solely by how hard it was pushed by the mainspring, which is why the fusee, or an alternative called a stackfreed, that equalises the torque from the mainspring was vital in such watches. Without a fusee or stackfreed the rate would change so much as the mainspring ran down that the watch would be useless as a timekeeper. Even with one, early watches without balance springs were poor timekeepers.

The addition of the balance spring transformed the timekeeping capabilities of watches by giving the balance a "natural frequency". The spring causes the balance to oscillate at this frequency, to which it returns after a disturbance. The less the balance and spring are disturbed the better the timekeeping, which is why detached escapements which only interfere with the balance over a short part of its arc, are better.

The image here shows a balance and balance spring. The balance spring is the blue spiral in the middle of the image. It is blue because it is made of high carbon steel that has been hardened and then heated until it turns blue to temper it to spring hardness. At its inner end it is attached to the balance staff by the brass collet. The spring enters a tangential hole in the collet and is fixed in place by a pin. The outer end of the spring is fixed to the movement, to the balance cock, by the brass stud.

The balance spring in the image is not a perfect spiral. This is not a fault, its outer turn is bent up above the plane of the spring and in towards the centre in a Breguet overcoil. This is to improve isochronism. The rim of the balance has a thin inner steel layer and a thicker outer layer of brass, and is cut through in two places near to the spoke. The two sections of the rim are bimetallic strips that bend in or out in response to temperature changes, to compensate for other temperature effects. Not all balance springs and balances are like this.

In a pendulum clock the principal effect of an increase in temperature is that the pendulum becomes slightly longer. In a domestic pendulum clock, the effect of this is usually negligible unless a high level of precision is required. A similar effect occurs in watches, the diameter of the balance increases with temperature. However, this is opposed by similar dimensional changes in the balance spring and the overall effect on timekeeping is small.

Ferdinand Berthoud

Ferdinand Berthoud was the first to tabulate in 1773 the effects of temperature on one his marine watches. He recorded that a temperature change from 32°F to 92°F caused it to lose 393 seconds in 24 hours which he apportioned as follows:

Berthoud's observation and (incorrect) apportionment
by expansion of the balance62 seconds
by loss of the spring's elastic force312 seconds
by elongation of the balance-spring19 seconds
Total loss per day393 seconds

The reasoning behind Berthoud's apportioning of the individual losses is not known, and it is not correct. It was accepted until 1882 when Mr T. D. Wright of the BHI, pointed out that the stiffness of a spring is proportional to its width and inversely proportional to its length, and as these two dimensions are affected in equal ratio by changes of temperature, there is no overall effect on the stiffness of the spring.

The overall loss recorded by Berthoud of 393 seconds in 24 hours due to a change in temperature of 60°F equates to 11.8 seconds per day per °C, which is in line with other observations.

Effects of Elasticity

In a watch, a much more significant effect of increasing temperature is that the modulus of elasticity, also called Young's modulus, of the balance spring reduces. The effect of this is that the spring produces less force for a given angle of rotation. This effect is many times larger than that from the lengthening of a pendulum rod or increasing the diameter of the balance.

A watch that is carried in the pocket or worn on the wrist is kept at a fairly constant temperature by warmth from the body, which mitigates the problem to an extent, but it is usually taken off overnight and becomes cooler. However, precision time references are not normally worn and are therefore subject to all the temperature fluctuations of nature, which were more significant in a time before houses and workshops were heated.

The rate of a watch is determined by the rotational ‘moment of inertia’ of the balance and the stiffness of the balance spring. The period \(T\) is given by:

\[ T = 2\pi \sqrt \frac {I}{S} \]

where \(I\) is the moment of inertia of the balance and \(S\) is the stiffness of the balance spring. This equation gives the period of one complete oscillation of the balance or two vibrations. A vibration is half a complete oscillation, which is often used by horologists because it is the time between ticks.

The equation above can be expanded by substituting the dimensions and material properties of the balance and spring as follows:

$$ T = 2\pi \sqrt \frac {12 m k^2 l}{t^3 E h} $$

m : Mass of the Balance
k : Radius of Gyration of the Balance
l : Length of Balance Spring
t : Thickness of Balance Spring
h : height (width) of the Balance Spring
E : Modulus of Elasticity of the Balance Spring

With an increase in temperature, thermal expansion causes the balance to increase in diameter, which increases its rotational inertia and, all other things being equal, would cause the watch to run slower, i.e. a decrease in rate. Changes in elasticity of the material of the balance have no effect on timekeeping.

An increase in temperature causes the balance spring to expand in all directions, thickness, height and length. The increases in height and length have opposite effects on the stiffness of the spring and cancel each other out. The increase in thickness makes the spring slightly stiffer, which causes an increase in rate.

If all the terms in the equation above that do not change with temperature, π and the square root of (12 times the mass m and the ratio of length to height), are aggregated into a single constant, the period can be expressed as:

$$ T = {constant} \frac { k }{ \sqrt{t^3 E} } \space\space\space\space or \space\space\space\space T \propto \frac { k }{ \sqrt{t^3 E} } $$

This shows that as temperature changes, the period will be proportionally affected by changes in the radius of gyration of the balance, and inversely proportionally by the square root of changes in the thickness of the spring and its modulus of elasticity. An increase in the radius of gyration of the balance due to thermal expansion will increase the period, which will make the watch run slower. An increase in the thickness of the spring due to thermal expansion will decrease the period, which will make the watch run faster.

The effect on timekeeping of dimensional changes in the balance and balance spring are vastly outweighed by changes in the modulus of elasticity of a carbon steel balance spring. The modulus of elasticity of a carbon steel balance spring decreases significantly as the temperature increases, which makes the spring weaker as the temperature increases and causes a decrease in rate.

If a watch has a brass balance and carbon steel balance spring, it would lose over 10 seconds per day for a rise in temperature of just 1°C. It might be thought that a watch with a steel balance, which has nearly half the thermal expansion of a brass balance, would be better, but in fact a watch with a steel balance would lose "only" just under 10 seconds a day for the same 1°C temperature rise. The material the balance is made from has very little effect on temperature errors. The major source of error is the change in the elastic modulus of the spring.

The individual effects for both brass and steel balances are tabulated below.

Change in rate (seconds per day) for 1°C rise in temperature
Brass balance  Steel balance
Balance thermal expansion -1.60-0.90
Spring thermal expansion 1.351.35
Spring decrease in Young's modulus -11.37-11.37
Totals (- indicates loss)-11.62-10.92

The thermal expansion of the spring and the brass balance somewhat compensate each other. The expansion of the thickness of the spring makes it stiffer and, all other things being equal, would make the watch run faster by about 1.35 seconds per day.

Thermal expansion of the brass balance increases its radius of gyration, and hence its moment of inertia, which would make the watch run slower by about 1.6 seconds per day. The two effects, increasing spring thickness and increasing balance moment of inertia, oppose and partially cancel each other. In aggregate they contribute only ¼ second per day to the overall loss of over 11 seconds.

With a steel balance the gain in rate due to the increase in stiffness of the spring is actually greater than the loss due to the increased moment of inertia of the steel balance, resulting in a gain in rate of 0.45 seconds per day, reducing the overall loss to less than 11 seconds per day.

It is the change in Young's modulus of the balance spring that contributes the remaining amount. For a brass balance, the decrease in Young's modulus with temperature contributes 98% of the loss. For a steel balance, the decrease in Young's modulus with temperature turns the small gain of 0.45 seconds per day due to the expansion of the balance spring into an overall loss of 10.92 seconds per day.

Sir George Biddell Airy, the Astronomer Royal from 1835 to 1881, showed by experiment in 1859 that a chronometer with a plain brass balance lost 6.11 seconds in 24 hours for each degree Fahrenheit increase in temperature, equivalent to 11 seconds per day per degree centigrade, which is in very close agreement with the loss of 11.62 seconds calculated above.

The bottom line is that a watch that is not compensated for temperature variations can be expected to lose or gain around 11 seconds per day for every one degree change in temperature. If such a watch was adjusted to run correctly on the watchmaker's bench at, say, 20°C, which is perhaps the same temperature at which it might spend eight hours overnight on the bedside table, and then it was strapped to your wrist at 34°C for the remaining 16 hours of the day, you could expect it to lose over a minute and a half each day.

The fact that most watches do not show such alarming changes in rate is due either to aspects of their design (compensation balance) or materials (autocompensating balance springs) that compensate for or nullify the effects of temperature changes.

Back to the top of the page.


Temperature Compensation

John Harrison was the first person to successfully apply temperature compensation to a balance controlled timekeeper, in a pocket watch made for him in 1753 by John Jefferys to Harrison's specification. This was the first watch with temperature compensation, and also the first fusee watch with maintaining power, which kept the watch going as it was being wound. Before this invention, fusee watches without maintaining power stopped as they were being wound, losing accuracy. The Jefferys watch also has Harrison's version of the verge escapement, which includes verge pallets with cycloidal backs.

All of Harrison's marine timekeepers included temperature compensation. His first marine timekeeper now called H1, which was constructed between about 1728 and 1735, and the second H2, which was begun in 1737, had gridiron type bimetallic elements similar to the gridiron pendulum Harrison had invented for his land based clocks. For H3, which was begun in 1740, Harrison created a "brass and steel thermometer curb" which was a bimetallic element made from strips of brass and steel riveted together. Because of the differential thermal expansion of brass and steel - brass expands more than steel for a given rise in temperature - as the temperature rises the bimetallic curb will bend. The free end of the curb was fitted with two pins that embraced the balance spring near to the point at which it was attached to the plate, and the bending of the curb was arranged to shorten the effective length of the spring as the temperature rose, compensating for its loss of elasticity. This was the form of temperature compensation used in the Jefferys watch.

Harrison abandoned work on H3 before it was completed, and in 1755 began work on H4, essentially a large pocket watch with a verge escapement and plain steel uncut balance quite similar in overall design to the watch made for him by John Jefferys. H4 has temperature compensation by thermometer curb as used in H3 and the Jefferys watch, maintaining power, Harrison's version of the verge escapement with diamond pallets with cycloidal backs, and a train remontoire, which was its only essential difference from the Jefferys watch.

H4 was the timekeeper that successfully passed the tests stipulated by the 1714 Act of Queen Anne "An Act for Providing a Publick Reward for such Person or Persons as shall Discover the Longitude at Sea" and which resulted in Harrison eventually being awarded the prize for "finding the longitude". There is no question that H4 could not have achieved this feat without adequate temperature compensation, but Harrison was said to be unhappy with the compensation curb because he found that the balance, balance spring, and the compensation curb itself were not all affected at the same time by changes in temperature. The swinging balance and spring would have reacted to temperature changes more quickly that the stationary and more massive compensation curb, and Harrison considered that the compensation would be improved if it was in the balance itself.

The form of temperature compensation seen in nineteenth century pocket watches and early wristwatches uses a "compensation balance" with a cut bimetallic rim, which is discussed in more detail in the next section. The compensation balance was invented by Pierre Le Roy, son of Julien Le Roy, and was improved into the bimetallic form most widely seen by John Arnold and Thomas Earnshaw. The bimetallic balance rim is made of steel with a layer of brass fused onto the outside, and it is cut so in two that the two sections of the rim can bend inwards and outwards. When the temperature increases the extra expansion of the brass compared to the steel causes the bimetallic sections to bend inward. This reduces the moment of inertia of the balance, compensating for the weakening of the spring. When the temperature falls the opposite effect occurs, the bimetallic sections to bend outwards to increase the moment of inertia and compensate for the increased stiffness of the spring.

The discovery by Dr Guillaume of the strange properties of nickel steels made it possible to make balance springs whose change in elasticity with temperature is small and controllable and which could compensate for their own expansion and that of a monometallic balance. This is discussed in the section below about on autocompensating balance springs.

Back to the top of the page.


Compensation Balance

Compensation balance
Marine Chronometer Compensation Balance

The form of temperature compensation first seen eighteenth century marine chronometers, and later in pocket watches and early wristwatches uses a "compensation balance". This followed a principle suggested by John Harrison that rather than using a bimetallic curb to alter the effective length of the balance spring in response to changes it temperature it would be better if the compensation were in the balance itself.

This was achieved by making a balance with a split bimetallic rim that reacted to temperature changes. This balance was invented by Pierre Le Roy, son of Julien Le Roy, and improved to the form most widely seen by John Arnold, and finally by Thomas Earnshaw who devised the method of melting and fusing brass onto a steel core.

The general form of this balance is shown in the picture here. This is a sketch of the balance found in a marine chronometer, a large instrument mounted on gimbals in a cube shaped box. The balance rim is made of an inner layer of steel (coloured grey) with a layer of brass (coloured yellow) fused onto the outside. This turns the rim into a bimetallic strip and it is cut in two places near to the cross bar so that the two sections of the rim can move as shown by the dotted lines. This gives rise to the name and description of this balance as a ‘split bimetallic temperature compensation balance’, usually shortened to just ‘compensation balance’.

The operation of the balance is as follows. If the temperature increases, the brass on the outside of the rim expands more than the steel and this causes the bimetallic sections of the rim to bend inward, carrying the masses inwards towards the central axis of rotation of the balance. This reduces the moment of inertia of the balance, compensating for the weakening of the balance spring. If the temperature falls, the opposite effect occurs and the rims bend outwards, carrying the masses outward and increasing the moment of inertia of the balance, compensating for the increased stiffness of the balance spring at low temperature.

The two large masses mounted part way along the bimetallic sections were often called compensation masses, although it is their mass that contributes to the moment of inertia of the balance. The amount of compensation produced in response to a given change in temperature can be increased or decreased by sliding the masses along the bimetallic sections. The further away from the cross bar the masses are positioned, the greater the effect of the compensation.

Experiments by Kullberg in 1887 had shown that the cut bimetallic rims could be significantly affected by outward flexing. One of the balances he submitted to the Royal Observatory for testing was fitted with an "ordinary compensation balance" which had rims of thickness 0.038 inches (less than 1 millimetre) thick. The "length" of the acting laminae, the bimetallic strips, was given as 135° and the compensation masses were positioned 98° from the bar. A chronometer fitted with this balance was tested with the balance making long "arcs" of one turn and a fifth and short arcs three quarters of a turn. The arc describes the full travel of the balance from one extreme to the other so these arcs correspond to amplitudes of 216° and 135°. To someone used to working with watches these are very low amplitudes, implying a normal amplitude for a marine chronometer of 180 degrees; they were deliberately kept low to minimise outward flexing.

The mean daily rate in the short arcs was +2.6 seconds, in the long arcs it was +0.5 seconds. In the long arcs the speed of rotation was greater and the momentum of the rims and compensation masses caused the rims to flex out further than in the short arcs, increasing the radius of gyration and slowing the rate by over 2 seconds a day. This shows how important the fusee was to the performance of a chronometer with a cut bimetallic balance, because by keeping the impulse constant it kept the amplitude constant.

In "The Marine Chronometer" Commander Gould implies that the compensation masses could be at 120°, which would make the rims sections longer and the flexing effect even more prominent. In the diagram here I have shown them at 98° as per Kullberg's data.


Longines 13.34 Movement with Cut Bimetallic Compensation Balance: Click image to enlarge

The two large screws at the end of the cross bar are mean time screws, used to adjust the rate when the best temperature compensation has been established, the two small screws next to them are for very fine adjustments to the rate.

In a smaller movement such as a pocket or wristwatch there is not enough room for the large compensation masses and meantime screws, so a number of small screws distributed along the length of the bimetallic sections are used. Changes in the compensation are effected by moving some of the screws, and fine adjustments are achieved by fitting thin timing washers, or by reducing the size of some of the screw heads.

The balance shown in the photograph here is fitted to a Longines 13 ligne calibre 13.34 movement dated to 1913. It is a high grade version of the 13.34 calibre with the train jewels set in screw-set chatons, cap jewels for the escape wheel, and jewelled to the centre, giving a total of 18 jewels.

The two different metals of the balance rim, steel on the inside and brass on the outside, are visible, and it is notable that the steel is much thinner than the brass; this was to get maximum movement from the bimetallic sections. One of the two splits in the rim that allow the bimetallic sections to move is visible at the top of the photograph near to the steel stud carrier. The other split is concealed by the centre wheel. The timing screws are visible, distributed along the rims of the balance. These screws are made of gold, which was used because of its greater density compared to steel; a screw made of gold weighs more than twice as much than the same screw made of steel, and therefore is more effective in adjusting the compensation.

Uncut Compensation Balances

Watch balances are seen that look exactly like compensation balances, with brass and steel bimetallic rims, but the rim is not cut so the bimetallic strips can't curl in response to temperature changes. Sometimes the rims are cut part way through at the points near to the arms where they would be fully cut through to free the bimetallic strips.

This has long been a mystery to English watchmakers. Looking at one of these uncut balances, it occurred to me that the Swiss makers of balances might have supplied them to watchmakers in this form, which would be robust for transport, and it was the watchmaker's springers and timers who made the final cut. When a bimetallic balance rim is cut, residual stresses cause the freed bimetallic strips to spring out of shape, which then have to be bent back into being round. The process of bending the rims, poising the balance, testing the rate in different temperatures and then making further adjustments, is by far the most costly part of making a compensation balance, due to the wages of the expert springer and timer.

If I am correct, that balances were supplied by their makers uncut, the uncut balances seen in watches might be ones that, for some reason, it was decided not to spend the time and money on cutting and adjusting, but simply to fit them as they came from the balance makers.

Back to the top of the page.


Middle Temperature Error


HSN article about Middle Temperature Error.
Download article: MTE.pdf    A4929
Download spreadsheet: MTE.xlsx    S3161  I3356

In the late eighteenth century a phenomenon was observed in marine chronometers with temperature compensation. It was found that if the device was brought to time at a certain temperature it would lose at higher and lower temperatures. This effect was not observed in watches without temperature compensation because it was dwarfed by other effects, principally the change in rate with temperature due to variation in the elasticity of the balance spring. The effect became observable in marine chronometers with compensation for this major, primary source, of temperature caused error.

To minimise the total error over the range of temperatures a marine chronometer was expected to encounter, the timing was adjusted so that it was fast at a "middle" temperature and correct at two temperatures either side of this. This gaining rate at the middle temperature was called the "middle temperature error". Because the effect only became noticeable once the primary source of error, the change in the elasticity of the balance spring with temperature, had been compensated, it was also sometimes called "secondary error".

The cause of middle temperature error has been much debated over the years since it was first observed. Qualitative explanations were advanced claiming that it was due to the effects of square or square root terms in the equation for the period of a balance. Although these explanations were logical and true, it has now been shown that the magnitude of the error they cause is much smaller than the errors observed in practice. This is briefly outlined further down on this page and if you are not already familiar with recent discussions around middle temperature error I suggest that you read that short summary first.

The true cause of middle temperature error is discussed in more detail in an article published in the February 2017 edition of the Horological Science Newsletter (HSN). The article introduces a spreadsheet model that demonstrates the magnitudes of the different effects that contribute to middle temperature error. The HSN newsletter is published by NAWCC Chapter #161. The interest of Chapter #161 is the study and distribution of information about the science of horology. Chapter membership is available to members of the NAWCC. The editor of HSN, Bob Holmström has kindly agreed that my article and accompanying spreadsheet can also be downloaded from this web page.

The spreadsheet that accompanies the article allows you to interactively explore the effects of temperature on a balance and balance spring. I strongly recommend that you download and try it. You don't need to do any spreadsheet programming, it is already set up. You just alter the values of the thermal coefficients of expansion and elasticity, and charts built into the spreadsheet immediately show you the effect on timekeeping. It's really simple so give it a go, and if you have any problems just drop me an email. The spreadsheet is in Excel format. If you don't have the Microsoft Office Excel spreadsheet software, then Libre Office contains an excellent alternative that can open Excel format spreadsheets and is available absolutely free from Download Libre Office.

Spreadsheets were created to simplify and automate business models originally created with chalk and blackboards. They are a powerful tool, easy to use and incredibly useful but, like all complicated tools, if you have never been shown how to use one they can be initially daunting. I have created a short introduction into how they work to get you going. Download it from this link: Spreadsheets – A Simple Introduction. NB: Updated to Rev. 2.0 on 28 November 2017.

The spreadsheet can also be used to investigate the effects of the individual components. For example, to see the effect of thermal expansion of the balance alone, then set all the coefficients apart from the "Thermal expansion/ºC – balance:" to zero. As a check, a brass balance should show a loss of 1.64 seconds per day for a temperature increase of one degree C, a steel balance 0.95 seconds per day per degree C. The loss occurs because thermal expansion of the balance increases its rotational inertia, the difference in rates is because of the smaller thermal expansion of steel than brass.

The article and spreadsheet can be downloaded from these links: Article: MTE.pdf, Spreadsheet: MTE.xlsx.

If you have any comments or questions, please don't hesitate to contact me via my Contact Me page.


Explanations of Middle Temperature Error

An explanation for middle temperature error was developed by the Reverend George Fisher and published in The Nautical Magazine of 1842 under the name of E. J. Dent, of the chronometer makers Arnold & Dent. Fisher's name is not mentioned in Dent's article, most likely because Fisher had incurred the displeasure of the English chronometer industry by publishing a paper that suggested that the going of chronometers could be affected by magnetism in iron ships, which was wrong but potentially damaging to the chronometer industry, and Fisher probably decided to keep a low profile as a result. He continued to work on chronometers but didn't publish anything further about them.

The explanation published by Dent was based on the observation that the equation for the period of a balance controlled timepiece can be written as:

$$ T = {2 \pi} \sqrt \frac { m k^2}{S} $$

where mk2 is the moment of inertia of the balance, m being the mass and k the radius of gyration, and S represents the force or turning moment exerted by the balance spring.

Compensation balance
Marine chronometer compensation balance

A bimetallic compensation balance alters the radius of gyration k in response to changes in temperature. The balance shown in the image illustrates how this happens. The rim of the balance is made by fusing brass onto the outside of a steel balance, and then making two cuts through the rim near to the spoke. If the temperature increases the brass expands more than the steel, which causes the bimetallic secions to curve inwards. If the temperature falls, the brass contracts more than the steel which makes the bimetallic secions curve outwards. The bimetallic secions carry masses and the radial position of these masses alters the moment of inertia of the balance. The amount of compensation can be altered by sliding the masses along the bimetallic secions. The further along the bimetallic secions that they are positioned, the greater the compensation.

If the temperature increases, the elastic force exerted by the balance spring decreases and the bimetallic sections of the balance move the compensation masses inwards to reduce the rotational inertia. The opposite happens for a fall in temperature, the bimetallic secions move the compensation masses outwards. The masses move only a very small distance and it seemed likely that they moved proportionally in response to temperature changes. Observations by Dent had suggested that the elasticity of the balance spring varied linearly with temperature, or very nearly so. In fact, Dent's data does show a non-linear effect in the spring tension, but for the purposes of explanation he assumed that it was negligible.

If the compensation was to be perfect, then from the equation above it is clear that the ratio of \(k^2\) to \(S\) must be constant. But if the masses are moved proportionally to a change in temperature, then the change in \(k\) will be linear and \(k^2\) will be a quadratic curve. Fisher realised that the curve produced by plotting \(k^2\) against temperature on a chart could only intersect with a straight line representing a linear \(S\) term at either one or, at most, two points. This is the explanation related by Commander Gould in "The Marine Chronometer" and drawn in a figure as a series of "I" curves representing the moment of inertia against a straight "S" line representing the spring term.

The Fisher / Dent explanation considers the relationship of the balance's moment of inertia to spring force within the encompassing square root sign of the equation for period. However, the encompassing square root cannot be ignored. When it is taken into account, it is evident that the period is proportional to the square root of \(k^2\); that is, the period is directly proportional to \(k\). It is clear from this that whatever is the source of the non-linearity that gives rise to middle temperature error, it is not the square in the inertia term.

An alternative way of visualising the effect is to rewrite the equation for period as:

$$ T \propto \frac { k} {\sqrt S} $$

If both k and S vary linearly with temperature, as was supposed, then a plot of k against temperature on a chart would be a straight line, but the plot of S would be a quadratic curve due to the square root. The k line could only intersect with the curve of the S term at either one or, at most, two points. This is the explanation related by A. L. Rawlings in "The Science of Clocks and Watches".

Rawlings' "square root" explanation is rational, logical and correct, and it held sway as the only explanation for middle temperature error for many years. However, although the reasoning is correct, the magnitude of the middle temperature error produced by this effect is much smaller than that actually observed. There must be another, more significant, factor at work.

The shortcoming in the square root explanation was noticed by Peter Baxandall during the updating of Rawlings' classic work by the BHI, and subsequently investigated by Philip Woodward in a paper published in the Horological Journal of April 2011. Woodward showed that the middle temperature error produced by the square root effect alone was around one tenth of a second per day, only a small fraction of observed values.

The reason that the square root effect is so small is because all of the coefficients are close to unity, where unexpected things happen to square roots. Lets say we are interested in a temperature range of 30°C; that's +/- 15°C around the middle temperature. The variation in the elastic modulus is given by 1+αt, where α (alpha) is the thermoelastic coefficient and t is the temperature change. Using Rawlings' figure of -207 parts per million per °C for the thermoelastic coefficient for S (he calls it Q), at the extremes of temperature +/- 15°C the change in the stiffness of a balance spring will be 0.9969 at +15°C and 1.0031 at -15°C.

Let's just look at the second of these figures for a moment. We want the square root of 1.0031 to use on the bottom of the equation for period. Rather than reaching for a calculator, lets look at the Taylor series expansion:

\[ \sqrt{1+x} = 1 + \frac{x}{2} - \frac{x^2}{8} + \frac{x^3}{16} ... \]

Here the value of 1.0031 can be substituted for 1+x, with x = 0.0031. The third term in the series, x squared over two, will be very small and it, along with all subsequent terms, can be neglected. So when x is small like in this case, the square root of 1-x can, with a high degree of accuracy, be represented by:

\[ \sqrt{1+x} = 1 + \frac{x}{2} \]

Middle temperature error or secondary error: seconds per day.
1: Blue line; square root effect alone.
2: Orange line; square root plus non-linear elasticity of balance spring.

It is immediately apparent that if the square root of the thermoelastic changes between +/- 15°C can be represented to a high degree of accuracy by the linear term on the right of the equals sign, the relationship between temperature and the stiffness of the spring is, also to a high degree of accuracy, linear. There is no doubt that the square root does cause some non-linear effect, but it is tiny. A cause for vast bulk of the middle temperature error must be sought in a different explanation.

In the late nineteenth century, Dr Guillaume realised that middle temperature error, which he called "secondary error" or "Dent's error", is due to the fact that the elasticity of the balance spring does not vary linearly with temperature but has a curvature. It is not clear that Guillaume ascribed any of the middle temperature error to the square root effect, he doesn't mention it in his writings. From his work on changes in the dimensions and elastic moduli of nickel steels with changes in temperature he would have known that any such effect would be small, it appears that he probably thought it would be negligible. Dr Guillaume's explanation of the effect can be found at The Guillaume "integral" balance.

The chart here shows the two effects on the timekeeping of a machine brought to time at 5°C and 35°C, with a middle temperature of 20°C. The blue line shows the middle temperature error that results from the square root explanation alone. It is very small, of the order of one tenth of a second per day. The orange line shows the error that results when the curvature in the temperature response of the elasticity of the balance spring is also taken into account. This results in an error of more than two seconds per day, which is in accordance with observed values of middle temperature error.

Back to the top of the page.


The Guillaume ‘Integral’ Balance

After Dr Guillaume published the discovery of invar in 1896, Paul Perret found that it had a positive thermoelastic coefficient. This led to the creation of nickel steel balance springs which improved the temperature compensation of ordinary watches considerably. But although the thermoelastic coefficient of these springs was zero at normal temperature, at higher or lower temperatures it varied, which resulted in a secondary error of 20 to 25 seconds in twenty-four hours over a temperature range of 30 degrees. This meant that such balance springs could not be used to achieve the highest precision required for observatory trials and marine chronometers.

Ordinary bimetallic compensation
Middle Temperature Error of Ordinary Compensation Balance

Marine chronometers with bimetallic compensation balances already achieved a better performance than this, but their accuracy was affected by middle temperature error. Many auxiliary compensation devices had been invented to counter middle temperature error, but they were delicate and difficult to adjust. Dr Guillaume realised that the properties of nickel steel could be exploited to overcome middle temperature error, or secondary error as he called it, and invented the Guillaume or ‘integral’ balance.

To understand how Dr Guillaume created the integral balance it is useful to understand his view of how middle temperature error arose. The green line labelled ‘Spring’ on the figure of middle temperature error represents the change in rate caused by the decrease in stiffness of the balance spring with increasing temperature. Dr Guillaume explained that rather than being straight this had a curvature as shown. This should not be a surprise, the stiffness of a material is determined by inter-atomic or inter-molecular forces. As increasing temperature expands the material by causing the molecules to move further apart the force of those bonds must decrease by an inverse square law type effect. In fact, Dent's data from his experiments with a chronometer fitted with a glass balance show this curvature.

The rate of a compensated watch is determined by how closely the compensation matches the change in stiffness of the balance spring. The straight blue line labelled ‘Balance’ represents the change in rate due to the inward movement of the compensation masses in response to increases in temperature. The masses are moved inwards with increasing temperature to reduce the moment of inertia of the balance to compensate for the reducing stiffness of the balance spring.

It is evident that the straight blue line of the compensation balance does not exactly mirror the green curve of the balance spring. The net effect on rate is given by the difference between the two, resulting in the curved red error rate line of middle temperature error.

Guillaume integral balance
Guillaume Integral Balance

Brass and steel, like most metals, have a small positive non-linear curvature in their rate of thermal expansion. This means that their rate of expansion increases slight as the temperature increases. It is not a large effect, but it exists and can be measured. It can be characterised by a quadratic term in the equation for thermal expansion, so called because it is based on the square of the temperature.

The non-linear rate of expansion of brass is slightly greater than that of steel. This increases the rate of compensation as temperature increases, which has the effect of reducing middle temperature error, but the effect is small and not significant. The difference of thermal expansion between steel and brass produces an almost exactly linear change in the compensation provided by an ordinary compensation balance.

Some nickel steel alloys have the unusual property of a downward curvature in their thermal expansion, characterised by a negative coefficient for the quadratic term in the expansion equation. Guillaume realised that by exploiting this effect he could alter the compensation to mirror the change in stiffness of the balance spring. In the spring of 1899 Guillaume identified an iron nickel alloy with the necessary negative non-linear expansion required to nullify middle temperature error. He called this material "Anibal", short for "acier-nickel pour balanciers" (nickel steel for balances).

The steel inner layer of a bimetallic compensation balance was replaced by the nickel steel Anibal alloy. The dark blue curved line in the second figure shows the effect of this on the change in rate caused by the balance. The blue line of the rate due to the balance has an upwards curve that matches the downwards curve of the green spring line, eliminating the secondary error and producing a flat rate over the temperature range.

The rate of thermal expansion of Anibal is smaller than than that of steel, so the difference between the linear expansion of brass and Anibal is greater than that between brass and steel. A bimetallic strip made from brass and Anibal deflects more for a given change of temperature than one made from brass and steel.

Guillaume integral balance
Guillaume integral balance

The Guillaume Integral balance was designed to be used with carbon steel balance springs, the same as ordinary brass / steel compensation balances. This meant that in both types of balance the compensation masses had to move essentially the same distances, although the masses in the Guillaume balance moved with the non-linearity needed to eliminate secondary error. Because the deflection of the bimetallic sections of the Guillaume balance was greater for the same temperature change, a shorter length of rim produced the necessary movement of the masses. Essentially the compensation masses of the Guillaume balance could be placed closer to the root of the strip where it is attached to the arm.

To produce the necessary movement of the compensation masses, an ordinary brass and steel compensation balance had to have long thin bimetallic sections. Kullberg had shown in 1887 that these long bimetallic sections were affected by outward flexing of the rims. One of the balances he submitted to the Royal Observatory for testing was an ordinary compensation balance which had rims of thickness 0.038 inches (less than 1 millimetre) thick. The length of the acting laminae, the bimetallic strips, was given as 135° and the compensation masses were positioned 98° from the bar. With such long thin bimetallic sections it is hardly surprising that the ordinary compensation balance would be significantly affected by outward flexing of the rims.

The Guillaume compensation balance produced the required movement of the masses with much shorter bimetallic sections, which were also less susceptible to outward flexing of the rims. Because of this the rim could be cut at 90° to the bar to make four short bimetallic sections, and four smaller compensation masses used. The distance these had to be moved to provide the compensation was essentially the same as in the ordinary compensation balance, but instead of being positioned 100° to 120° along the laminae they could be at about 45°.

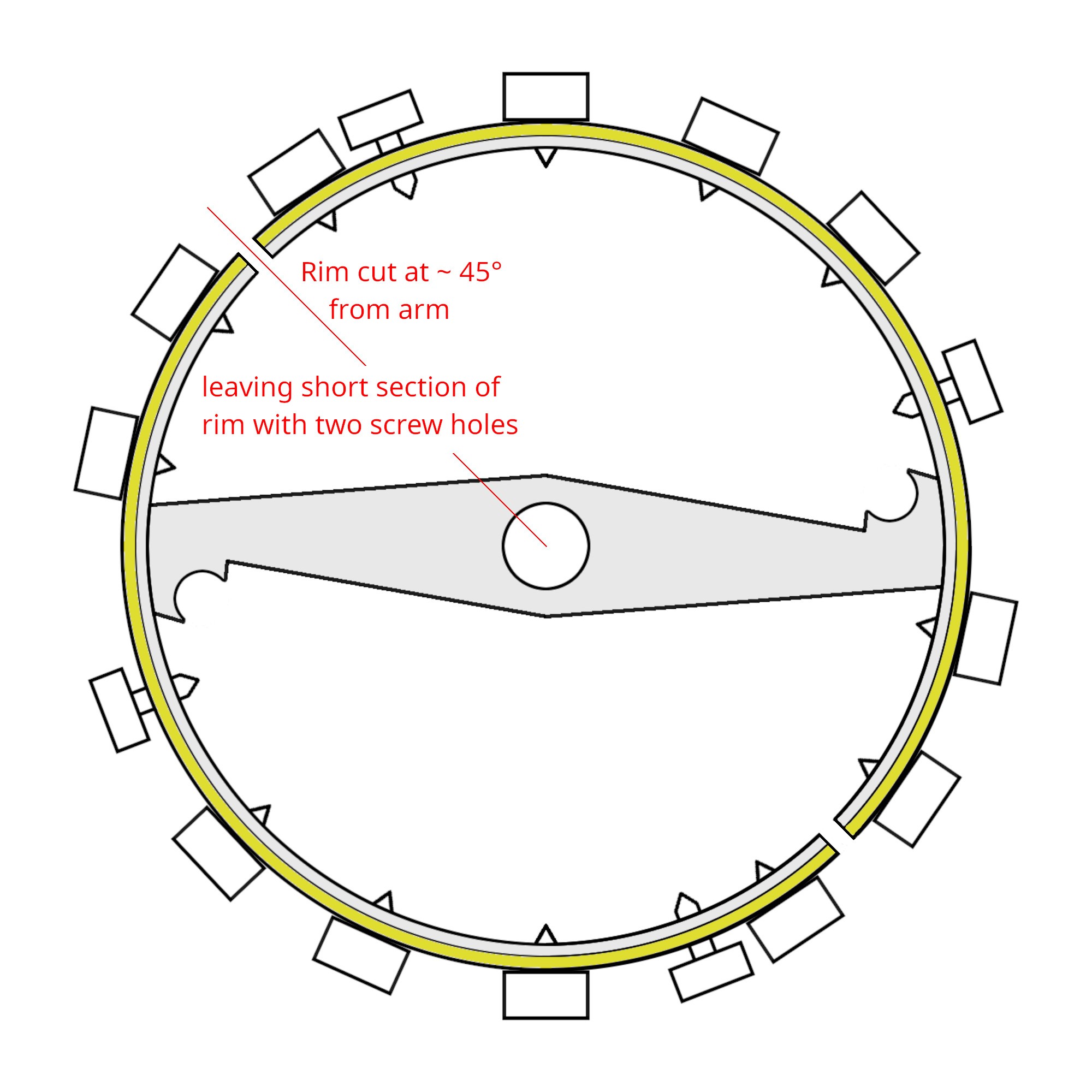

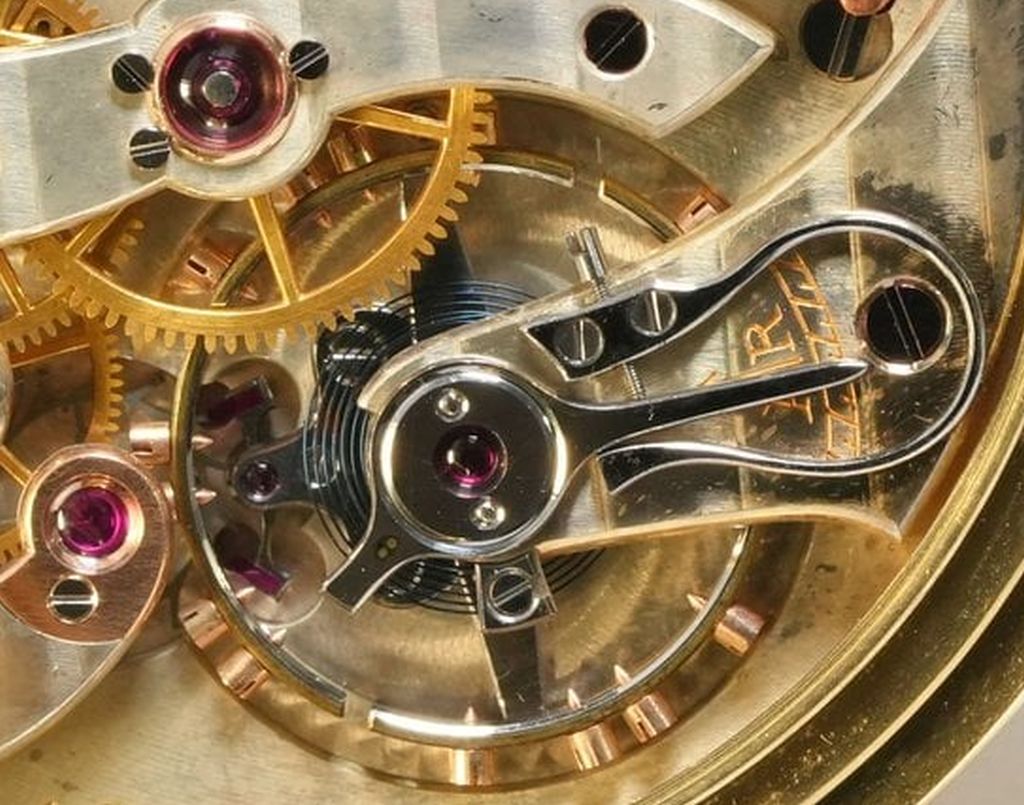

The drawing of a Guillaume compensation balance shown here can be compared to the drawing of an ordinary marine chronometer compensation balance in the section about the Compensation Balance.

Back to the top of the page.


B. W. Raymond Invar Balances

A statement that sounds self contradictory or paradoxical is that “Invar balances contain no Invar”. But it's true, and here is the explanation.

Elgin B W Raymond
Elgin B W Raymond: Click image to enlarge
Elgin B W Raymond Balance
Elgin B W Raymond Balance: Click image to enlarge

Watches like the one shown in the photos here were introduced by the Elgin National Watch Company of Elgin, Illinois, in 1923 under the name “B. W. Raymond”. Benjamin W. Raymond was the Elgin National Watch Company’s first president. These watches were aimed at railway workers and have the features expected in a Railroad Grade watch, with a clear and easy to read dial and lever setting to avoid accidentally changing the time.

The movement is very high quality, with 21 jewels, a fine adjustment Ball type regulator and a special type of compensation balance. The photo of the face of the watch shows within the seconds track that Elgin called this an “Invar Balance”.

The second photo is a close up of the balance. It has a cut bimetallic rim with brass on the outside and a silvery coloured metal on the inside. This metal is a nickel-steel alloy, but it is not Invar. Invar is strictly the name used for the nickel steel alloy with the lowest rate of thermal expansion, which has around 36% nickel. The nickel steel alloy in this balance has a different ratio of nickel to steel and therefore is not Invar.

Unlike brass and steel compensation balances, the rims of which are cut close to the arms, the rims of this balance are cut at an angle of about 30° to the arms. This creates a long and a short section on either side of each arm. Each of these sections carries gold screws for poising the balance and adjusting the compensation. In this balance, the shorter sections carry one screw. These short sections are the sign that the balance is not an ordinary brass and steel compensation balance.

Invar is the name given to a nickel-steel alloy that has very low thermal expansion, meaning that it hardly expands or contracts with changes in temperature. Invar was discovered in 1896 by Dr Charles Guillaume of the International Bureau of Weights and Measures, the BIPM, in Sèvres. It has a nickel content of nominally 36% by weight and a coefficient of thermal expansion of around \(0.8 \times 10^{-6}\) per degree Celsius, which can be further reduced by heat treatment. The name Invar was suggested by Professor Marc Thury because of its lack of thermal expansion and almost invariable dimensions. All other nickel-steel alloys have greater thermal expansion than Invar.

The use of a nickel-steel alloy in compensation balances stems from the problem of the middle temperature error and was the result of the research at the end of the nineteenth century into nickel-steel alloys by Dr Guillaume. In 1899, Guillaume realised that one of alloys he had been studying could be used to resolve the problem of middle temperature error.

Middle temperature error arises because the modulus of elasticity of a steel balance spring does not decrease in direct proportion, or linearly, with increasing temperature, but instead follows a downward curve. A brass and steel compensation balance eliminates most of this effect by reducing its own effective diameter as the temperature increases. However, the compensation provided by a brass and steel compensation balance varies linearly, which means that it can only exactly compensate for the non-linear changes in the modulus of elasticity of a steel spring at either one middle temperature, or at two points equally distributed about the middle temperature. To get the best overall rate, watch and chronometer makers chose the second of these, making the rate correct at two temperatures. The watch would then gain at temperatures between these two points, the middle temperature error, and lose at temperatures outside them.

The reason that the compensation provided by a brass and steel compensation balance varies linearly with temperature is due to a curious coincidence in the rates of thermal expansion of brass and steel. When a piece of metal is heated or cooled by \(\pm \theta\) degrees, its length at the new temperature can be calculated using this expression,

\[ L_\theta = L_0 ( 1 + \alpha \theta + \beta \theta^2 ) \]

where \(L_0\) is the length at the initial temperature, \(\theta\) is the change in temperature and \(L_\theta\) is the length at the new temperature.

Inside the brackets, the \(\alpha\) and \(\beta\) symbols are the coefficients of thermal expansion. Frequently, only the first term with \(\alpha\) is used, but for watches greater accuracy is required so the second term with \(\beta\) is added. If only the first term is used, the result is that the calculated length changes in direct proportion, that is in a straight line or linearly, with changes in temperature. When the second term is added, this introduces a curve or non-linearity into the change in length with temperature, because it is calculated using the square of the change in temperature.

The \(\alpha\) coefficient is called the linear coefficient of thermal expansion. The \(\beta\) coefficient is called the non-linear coefficient, or the quadratic coefficient because it involves the square of the temperature change.

The curious coincidence that causes the compensation provided by a brass and steel compensation balance to be linear is that, unlike their linear coefficients of thermal expansion, the non-linear coefficients of thermal expansion of brass and steel are virtually the same, \(5.5 \times 10^{-9}\) for brass and \(5.2 \times 10^{-9}\) for steel.

It is the difference between the thermal expansion of brass and steel that causes the rims of a compensation balance to bend. The greater thermal expansion of the brass layer on the outside compared with steel on the inside of the rims means that as the temperature incresases, the rims bend inwards. Because the rates of non-linear expansion of brass and steel are virtually the same, these nullify each other and it is only the difference between their linear rates of thermal expansion that cause the rims to bend, so they move in or out in direct proportion to changes in temperature.

Nickel Steels alpha and beta coefficients
Nickel Steels alpha and beta coefficients: Click image to enlarge

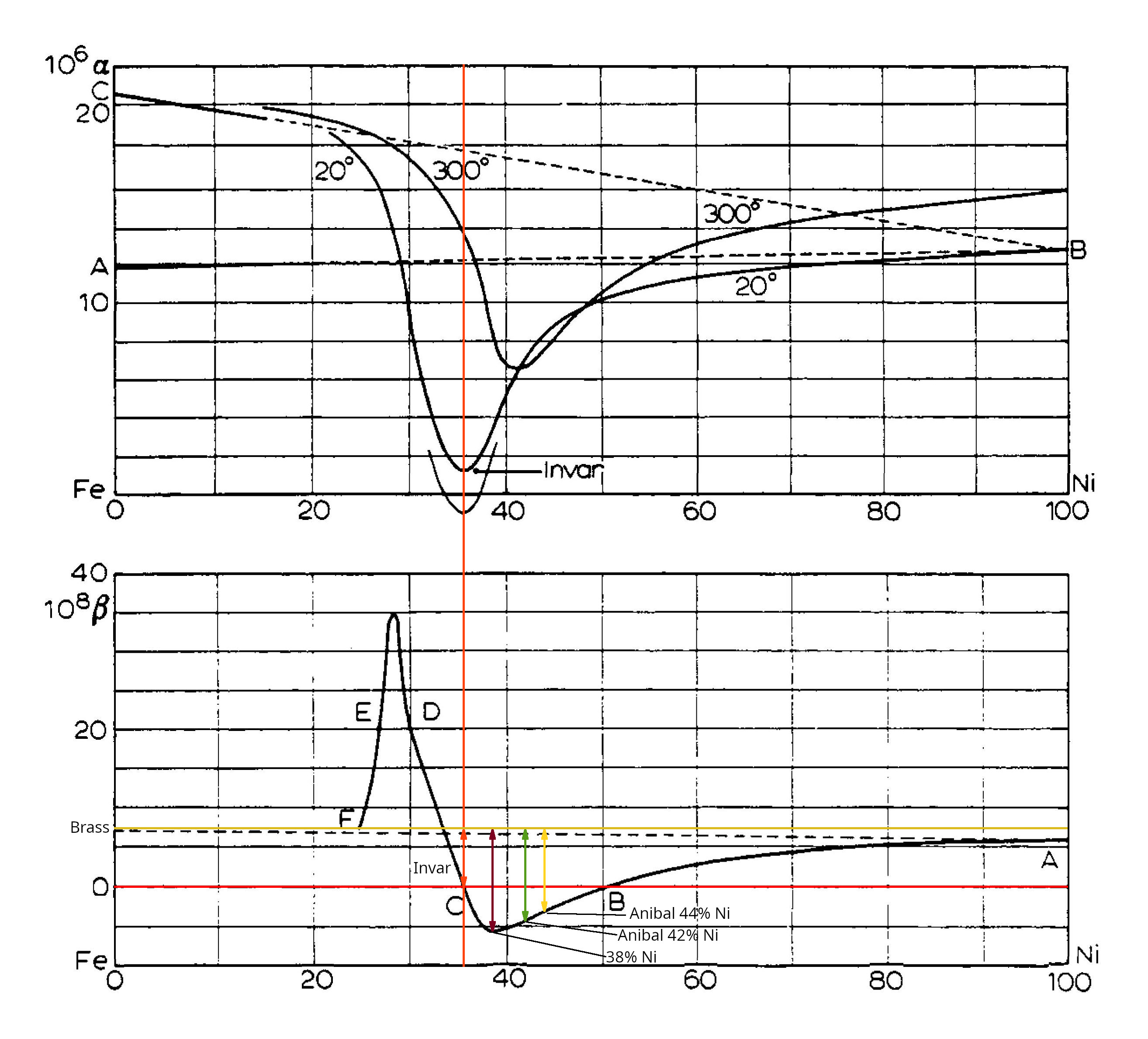

The plot here shows the \(\alpha\) and \(\beta\) coefficients for the nickel steels. The alloy with the lowest \(\alpha\) coefficient occurs at 36% nickel and exhibits almost no change in length as its temperature is increased, for which reason it is named Invar. The lowest point of the continuous curve is at \(0.8 \times 10^{-6}\) per degree Celsius, but a short section of curve below that indicates that the coefficient can be reduced further by heat treatment and become negative, so that the material actually contracts with increases in temperature.

The red vertical line through Invar crosses the curve of the \(\beta\) coefficients at the point labelled C, exactly at zero; the zero line is highlighted in red. Between points C and B, the \(\beta\) coefficients are below zero, that is they are negative. This is very unusual, the vast majority of metals have positive \(\beta\) coefficients and expand at an increasing rate as the temperature increases.

Note that the scale of the \(\beta\) coefficients in the lower graph is different from that of the \(\alpha\) coefficients in the upper graph. The scale of the \(\alpha\) coefficients has \(10^6\) next to the \(\alpha\) at the top of the y axis. This means that the figures on the y axis have been multiplied by \(10^6\), so that the figure 20 on this scale represents \(20 \times 10^{-6}\). The y axis of the \(\beta\) coefficients has \(10^8\) next to the \(\beta\), so the 20 on this scale is actually \(20 \times 10^{-8}\). Engineers like to use powers of three, so would write this as \(2.0 \times 10^{-9}\).

The non-linear or quadratic coefficient of thermal expansion of brass is shown on the figure as the brass-coloured line at \(5.5 \times 10^{-9}\) The non-linear coefficient of thermal expansion of steel lies immediately below it, where the dotted line crosses the y axis at 0% nickel.

One evening in the spring of 1899, the idea occurred to Guillaume that if the inner steel lamina of a compensation balance was replaced by something that had a rate of non-linear thermal expansion lower than that of steel, the non-linear expansion of the brass would come into play because it was no longer be nullified. The rate of compensation would increase as the temperature increased to more closely match the rate of decrease in the modulus of elasticity of a steel spring, and the middle temperature error would be reduced.

An obvious candidate was Invar, which has a non-linear coefficient of thermal expansion of zero. If Invar was used instead of steel, the non-linear expansion of the brass would make the rate of change of the compensation non-linear. This would reduce the middle temperature error by about 1 second in 24 hours, not enough to eliminate the full error of around 2½ seconds. This is the reason that Invar is not used in compensation balances; it would only partially correct the middle temperature error and another nickel-steel alloy is much better.

The amount of non-linear compensation is determined by the difference between the non-linear coefficients of the two parts of the bimetallic rims, the outer brass layer which has a non-linear coefficient of \(+5.5 \times 10^{-9}\), that is a positive value. The non-linear coefficient of Invar is zero, which in itself is unusually low, but and Guillaume realised that the difference between the non-linear expansion of the brass and the inner layer would be further increased by using one of the nickel-steels that has a negative non-linear coefficient, one of the alloys between the points C and B on the graph. Referring to the graph, it is easy to see how much further away from the non-linear coefficient of thermal expansion of brass the alloys between points C and B become.

Guillaume calculated that the non-linear expansion of an alloy with 44% nickel would virtually eliminate the middle temperature error. He called this alloy Anibal, from “acier nickel pour balanciers” (nickel-steel for balances).

The first compensation balances with Anibal instead of steel were made by James Vaucher, a balance manufacturer in Travers. When fitted to a Nardin chronometer, the middle temperature error was reduced by about 90%. Guillaume then undertook further experimental work in conjunction with the Société des Fabriques de Spiraux Réunies to reduce the error still further. As a result of this, the nickel content of Anibal was reduced from 44% to 42%. The invention of the balance had cost Guillaume only a few calculations, but the experiments were quite expensive and consequently the results were kept secret until revealed in the early 1920s.

Looking at the plot of the \(\alpha\) and \(\beta\) coefficients for the nickel steels, the lowest point on the curve of the \(\beta\) coefficients is at around 38% nickel. Using this alloy instead of Anibal would produce too much non-linear compensation. It would cause a new middle temperature error in the opposite direction to the previous one.

Compensation Balance Non-linear Effects
Compensation Balance Non-linear Effects: Click image to enlarge

The difference between the linear coefficients of the two metals in the bimetallic rims of a compensation balance causes the rims to move in a way directly related to a change in temperature. The different metals being discussed here that could be used with brass to form a compensation balance have different linear coefficients of thermal expansion, which cause would cause different amounts of movement for a given temperature change. However, this is not important to the analysis of the non-linear effects because the compensations screws or masses can be moved along the rim to make the change in moment of inertia the same.

It is the difference between the non-linear coefficients that reduces middle temperature error, by making the compensation follow a similar curve to the changes in the modulus of elasticity of a steel spring. The effect is very small in comparison to the linear effects. The middle temperature error of a steel balance spring with a brass and steel compensation balance is about 2½ seconds per day in the middle of a 30° temperature range, whereas the change in rate due to an uncompensated steel spring over the same temperature range would be 330 seconds per day. In order to see the non-linear effects on a graph, the linear effects have to be stripped out.

The plot here called Compensation Balance Non-linear Effects shows the effects of only the non-linear coefficients of the different combinations in a bimetallic strip of brass with steel, Invar, Anibal with 44% nickel and 42% nickel, and nickel-steel with 38% nickel. One thing that is very noticeable is how flat the curve of brass with steel is almost completely flat and it is easy to see that it doesn't compensate in any way for the non-linear reduction in the modulus of elasticity of the spring. The combination of brass and Anibal with 42% nickel gives the best compensation for the non-linear changes in the stiffness of the balance spring.

Various names were used for brass and Anibal compensation balances. In 1912, Guillaume was moved to write a letter to the Journal Suisse d’Horlogerie about this. He said

The balance that I described for the first time in this journal is quite generally, in French-speaking countries, designated by the name of its author [that is a balancier Guillaume or Guillaume balance]. In Hamburg, it is called Nickelstahlunruhe, an incomplete denomination, since nickel-steel constitutes only a part of it, while in Kew, it is called an Invar-balance, a decidedly erroneous name, Invar not entering into the composition of the balance.

After this, it became more common to refer to them as “Guillaume balances”, although some in England continued to refer to them as Invar balances. This was most likely simply due to a lack of familiarity with them. English chronometer makers used palladium alloy balance springs which had much less middle temperature error than steel springs and were corrosion resistant, so better for marine chronometers, and English watchmakers were not disposed to using highly priced foreign balances, whatever their name.

This is the answer to the apparently paradoxical assertion that Invar balances contain no Invar. The balances in Elgin B. W. Raymond watches are actually Guillaume balances, with the inner layer of the rim made of Anibal. It is not known why Elgin called them Invar balances, but it might have been after the earlier use at Kew and by some in the English trade, or possibly because the name Invar was well known and associated with precision metrology and timekeeping. Whether Elgin made them in-house or bought them from Switzerland is not known.

Back to the top of the page.


Temperature Compensating Balance Springs

The discovery by Dr Guillaume of the strange properties of nickel steels made it possible to make balance springs whose change in elasticity with temperature is small and controllable and which could compensate for their own expansion and that of a monometallic balance.

In the 1890s, Dr. Guillaume of the Bureau of Weights and Measures in Paris, the BIPM, was searching for a material that did not expand with changes in temperature to make standard lengths, and in 1896 discovered that a nickel steel alloy, which was later named Invar by Professor Marc Thury, had a very low temperature coefficient of expansion.

Paul Perret 1885, régleur de précision
Paul Perret 1885, régleur de précision: Click image to enlarge

When news of the discovery of Invar was published, Paul Perret, a régleur de précision or precision watch regulator in La Chaux-de-Fonds, immediately wrote to Guillaume asking for a sample. Perret had been making watches with palladium balance springs with good results in the 1896/97 trials in Berne and was always on the lookout for new materials.

Perret made the sample of Invar he received from Guillaume into a balance spring and was very surprised when a watch fitted with this spring increased in rate with increasing temperature. With this, Perret had discovered that the thermoelastic coefficient of Invar was positive, whereas normal steel balance springs had a negative thermoelastic coefficient. This meant that the Invar spring got stiffer as it got hotter and the restoring force it exerted on the balance increased. The thermoelastic coefficient of Invar is not only positive, it is also the largest in magnitude of the nickel steel alloys.

Paul Perret and Dr Guillaume agreed to collaborate on the study of thermoelastic effects in nickel steels and discovered two nickel steel alloys with 28% and 43% nickel content whose thermoelastic coefficient at normal temperatures is zero. For compositions between 28% and 43% nickel the thermoelastic coefficient is positive, outside this range it is negative, as in normal steels.

It might appear that the alloys with thermoelastic coefficients of zero would be useful for balance springs, but thermal expansion means that the stiffness of a spring made from one of these alloys would increase with increases in temperature. It was discovered that an alloy with a low but positive thermoelastic coefficient provided the best solution.

Thermoelastic and Thermal Expansion Effects
Thermoelastic and Thermal Expansion Effects: Click image to enlarge

The graphic here illustrates why this is. When the temperature of a nickel steel spring is raised, the stiffness of the spring increases. This is due to two effects; thermal expansion makes the spring thicker, and a positive thermoelastic coefficient makes the material stiffer. These two effects combined would alone cause a gain, but in practice they are used to compensate for the expansion of the balance.

Paul Perret was granted patents for the use of a nickel-steel balance spring with a small positive temperature coefficient of elasticity for use with a brass balance in Switzerland as CH 14270 with a priority date of 6 May 1897, in Great Britain on 5 February 1898 as GB 25,142 and in the USA on 12 March 1901 as US 669,763.

The use of Invar for the balance, to make a balance that would change only slightly in dimensions with temperature, was considered in the patent. This required a balance spring with a negative thermoelastic coefficient which, although it was possible, was not put into production. If nickel steel springs could be made to compensate brass balances, already widely used in watchmaking, there was no benefit in making balances of Invar. Invar is harder to machine than steel, it is difficult produce a good finish and it has a relatively dull appearance. For all these reasons, it is not a good material to use for making balances.

Nickel steel balance springs with a rate of thermal expansion and a thermoelastic coefficient that resulted in their increasing stiffness with rising temperature compensating for the expansion of a brass balance was the solution adopted. Later balances made of e.g. Maillechort and Glucydur, used with Elinvar and Nivarox balance springs, have a rate of thermal expansion similar to that of a brass balance, and the same principle is used in their compensation; Elinvar and Nivarox have positive thermoelastic coefficients that, together with thermal expansion, makes them become stiffer as their temperature increases.

The patents for nickel steel balance springs granted to Paul Perret evidently did not lead to any problems between him and Dr Guillaume. Throughout the rest of his career until his untimely death in 1904 at only 49 years old, Paul Perret worked together with Dr Guillaume studying the properties of nickel steels.

Paul Perret 1901 advert for compensation balance springs
Paul Perret 1901 advert for compensation balance springs: Click image to enlarge

The first Paul Perret balance springs went on sale in July 1899. They were awarded a bronze medal at the Paris Exposition in 1900. Perret subsequently set up his own company in 1901 in Fleurier, Société anonyme des spiraux Paul Perret, to manufacture and market these balance springs, as shown by the advert from 1901 reproduced here. It will be noted that the advert says that balances made all of brass give the best results.

After Perret's death in 1904, manufacture of Paul Perret springs was taken over by La Société des Fabriques de Spiraux Réunies.

Paul Perret nickel steel balance springs had several drawbacks. They were very soft compared with steel springs, the thermoelastic coefficient was very sensitive to variations in the composition of the alloy and it varied with temperature. This caused a secondary error that Dr. Guillaume said was of 20 to 25 seconds in twenty-four hours over a temperature range of 30 degrees. This was undesirable, but it was much better than an uncompensated steel spring, which would cause a variation of over 300 seconds over the same temperature range.

The advert says that "ordinary non magnetic" balance springs vary their rate by 15 to 18 seconds per degree centigrade. The material that these springs were made from is not stated, but was probably a palladium alloy, which is known to require slightly more compensation than steel. Various materials had been tried for balance springs that would be non-rusting and non-magnetic, including glass springs made by Dent which had been abandoned because they caused a gradual increase in rate over time, and gold alloy.

Palladium alloys, confusingly often called simply palladium, were first used for balance springs by Charles-Auguste Paillard in Switzerland in 1877. In combination with a compensation balance, a palladium alloy balance spring reduced the middle temperature error, even though its thermoelastic coefficient is larger than that of carbon steel and would give a variation of 13 seconds per day per degree C if not compensated. Palladium alloy balance springs therefore require slightly more compensation than steel ones, but have a much lower middle temperature error. Pure palladium metal, that is fine palladium with no alloying elements, has a smaller (negative) thermoelastic coefficient to carbon steel, which would cause a gain in rate per day per degree C, but is too soft to be useful for making balance springs.

The Perret advert says that a "well hardened" (trempé soigné) steel balance spring gives a variation of 9 to 11 seconds per degree centigrade. Two classes of Paul Perret compensation balance springs are then listed, a demi (half) compensation at 3 to 5 seconds per degree centigrade, and full compensation at 0 to 1 second. Although not stated in the advert, all these figures are over 24 hours.

Although the Paul Perret nickel steel balance springs did not provide perfect compensation at extremes of temperature, they were considerably better than uncompensated ordinary non magnetic or plain steel springs. They enabled for the first time cheaper watches that were not fitted with compensation balances to be made resistant to temperature changes. The actual performance of most watches fitted with these springs would have been better than 20 to 25 seconds in 24 hours, because watches worn or carried on the person do not experience 30 degree changes in temperature.

Guillaume Compensation Springs
Guillaume Compensation Springs: Click image to enlarge

In 1910, Dr Guillame introduced a new nickel steel alloy with additional solution hardening elements that gave the material a higher yield strength. This were sold under the name of “Spiraux compensateurs du Dr Guillaume” as shown in the advert here. The advert also mentions the “Balancier compensateur du Dr Guillaume”, the compensation balance which Guillaume invented to reduce the middle temperature error.

In 1912 Dr Guillame, working together with Pierre Chenevard of the Imphy steelworks, discovered that the addition of 12% chromium to the nickel steel used to make balance springs reduced the sensitivity of the thermoelastic coefficient to the precise composition of the alloy, and also eliminated most of the secondary error. Dr Guillame called this material "Elinvar", short for Elasticité Invariable, which was an unfortunate choice of name because Elinvar balance springs very definitely do not have invariable elasticity.

Although the formula and methods of production of Elinvar were determined by 1913, the First World War intervened and it was not until 1920 that Elinvar balance springs were made commercially available. The use of Elinvar brought almost perfect temperature compensation to affordable watches, and allowed even marine chronometers to be built with uncut monometallic balances, although these were resisted by the traditionalists.

The use of monometallic balances allowed a further simplification of chronometer mechanisms by dispensing with the fusee and using a going barrel instead. The cut rims of a box chronometer compensation balance flex significantly outwards as the balance accelerates, changing the moment of inertia of the balance. Without a fusee, the reduction in balance amplitude that occurs as the mainspring runs down would cause a significant change in timekeeping. A fusee was therefore essential in a box chronometer with a compensation balance, even the stiffer Guillaume Integral balance, although in watches with smaller balances the flexing is not significant. An uncut monometallic balance was immune to the effects of outward flexing of the rims and therefore a chronometer with an Elinvar balance spring and monometallic balance could have a going barrel. Isochronism over a range of amplitudes was ensured by attention to the point of attachment and terminal curves of the balance spring.

Paul Ditisheim, being the most meticulous of workers, found that small differences in alloy composition of Elinvar or the processes used during its manufacture into balance springs meant that the thermoelastic coefficient was not exactly zero. He added small bimetallic strips, which he called "affixes", to the rims of his monometallic balances to compensate for the small variations in the Elinvar springs. These could be arranged to cause either a loss or a gain depending on the characteristics of each individual Elinvar spring.

A problem with all nickel steel balance springs was that they were relatively soft and could be distorted if they were not handled very carefully. In 1933 Dr. Reinhard Straumann, technical director of Thommen S.A. working in conjunction with Heraeus Vacuumschmelze G.m.b.H. invented and patented an auto-compensating balance spring material that he called "Nivarox". This was a nickel-iron alloy with beryllium in place of carbon in steel, and with molybdenum, tungsten and chromium. Nivarox could be made non-magnetic and the thermal coefficient of its modulus of elasticity controlled by heat treatment.

Today Vacuumschmelze is a leading global manufacturer of advanced magnetic materials and related products, still making an alloy called Nivarox CT® which is used for the balance springs of mechanical watches. Straumann used the knowledge that he gained of corrosion resistant products to found a medical implant company, which is also still thriving.

Back to the top of the page.


If you have any comments or questions, please don't hesitate to get in touch via my Contact Me page.

Back to the top of the page.


Copyright © David Boettcher 2005 - 2024 all rights reserved. This page updated May 2024. W3CMVS. Back to the top of the page.
